12 Volt Rocket Launch Controller from Sunward™

Handles Model and Mid Powered Rockets

From A - G Motors

Top of the line with the following standard features:

• 12V power for precise firings (power supply not included)

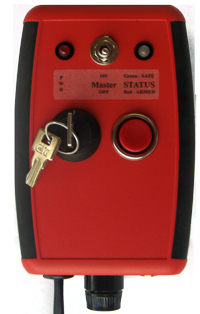

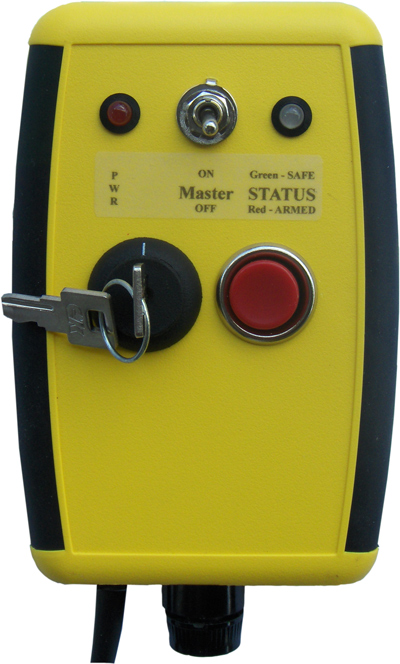

• available in Yellow or Red with soft side for comfortable holding
• available with battery cable connectors or with 12V plug - excellent for portable power sources
• master ON/OFF switch
• Flashing light AND buzzer sounds when power is turned on
• 2 in 1 light show continuity of circuit:
• Red light shows ARMED/ READY TO FIRE
• Green light show SAFE / OPEN circuit
• master key turns launch button off
• large launch button
• Long 3 metre (9.8ft) power cable
• EXTRA LONG 15 metre (49.2ft) ignition cable
• Fuse protection built into hand unit
• includes 2 solid copper clips to attach to igniters or Cluster Cables
• Continuity check safe for all industry igniters for model and Mid-Powered igniters
• Hand unit size:
• Length 4.62" / 11.7 cm
• Width 3.11" / 7.9 cm
• Height 0.95" / 2.4 cm
• The two clips at the end of the ignition cables are copper with flat surfaces for more surface area to grab on to. Easy to clean with sandpaper or a fine wire brush. Heat shrink tubing applied to joints for more strength and isolation.
• Soldered joints.

The 12Volt Connection is for use with 12Volt portable power supplies. It is not intended for use with power outlets on cars/ trucks/ RV's or other moving vehicles. Always follow safety procedures when launching a rocket.

Based on designs and input from Taras Tataryn, Gary White, and Daniel Barrett of DMB Rocketry

These Rocket Launch Controllers are made with Lead Free Soldier but may contain some impurities which may contain lead in small quantities

WARNING: The LEAD FREE SOLDER used in making these Rocket Launch Controllers CONTAINS TRACES OF LEAD which is a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. Federal and State/ Provincial laws prohibit the use of lead solder in making solder joints in any private or public potable (drinking) water supply system. After handling solder, wash hands with soap and water before eating or drinking.

Each Rocket Launch Controllers has a Lot Number. This Lot Number must be kept with the Rocket Launch Controllers at all times for reference and tracking purposes. THE LOT NUMBER IS NOT TO BE DISCARDED

DATA SHEETS:

The following are data sheets for Lot Numbers listed

LOT NUMBER N701723: Certificate of Analysis N701723
