CTI Pro54 Hardware Casing


SKU: P54 Hardware Case Category:


Pro54® rocket motor hardware is lightweight and robust, consisting of two components; the motor casing and the rear retaining ring.

Manufactured from thin-wall 6061-T6 aluminum tubing with an anodized coating for corrosion protection, Pro54® motor cases are lightweight but strong, capable of holding nearly 2500 psi of internal pressure. The forward closure is retained by a formed rim at the head end of the casing. The rear of the casing has precision-machined external threads, and uses a separate threaded ring to retain the reload. The retaining ring can be interchanged between Pro54® cases.

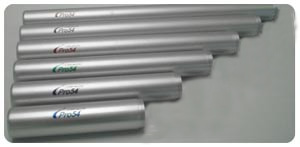

Pro54® motor casings are available in seven sizes to fit reloads from I through K class. Please refer to the motor specifications page to see which Pro54® casing is required for each reload.

Don’t forget that you’ll need a delay adjustment tool for your Pro54® reloads, unless you use electronic ejection exclusively. The ProDAT-54 tool allows you to reduce the delay time of your Pro54® reload by any amount up to 10 seconds.

Available in:

  • 1 Grain Case
  • 2 Grain Case
  • 3 Grain Case
  • 4 Grain Case
  • 5 Grain Case
  • 6 Grain Case
  • 6GXL Grain Case

ProDAT-54 only work with Pro54® reloads. Pro54® motor cases are not compatible with any other brand of reload.

Instructions PDF: Pro54 Hardware Instructions
Hardware Dimensions PDF: Pro54 Hardware Dimensions
Spacer Instructions PDF: Pro54 Case Spacer Instructions

Item: P54 Hardware Case

Contents subject to change. Price includes in store coupon.
